Manual Allows you to control the fan speed under the Slope PWM item.

Disabled Allows the fan to run at full speeds.

& Slope PWM

 Allowsyoutocontrolthefanspeed.Thisitemiscongurableonlywhen2nd/3rd System Fan Speed

Control is set to Manual. Options are: 0.75 PWM value /

C ~ 2.50 PWM value /

` Miscellaneous Settings

& PEGGen3SlotConguration

Allows you to set the operation mode of the PCI Express slots to Gen 1, Gen 2, or Gen 3. Actual operation

modeissubjecttothehardwarespecicationofeachslot.Forexample,thePCIExpressx1slotscan

supportuptoGen2modeonly.AutoletstheBIOSautomaticallycongurethissetting.(Default:Auto)

& Legacy BenchMark Enhancement

Allows you to determine whether to enhance some legacy benchmark performance. (Default: Disabled)

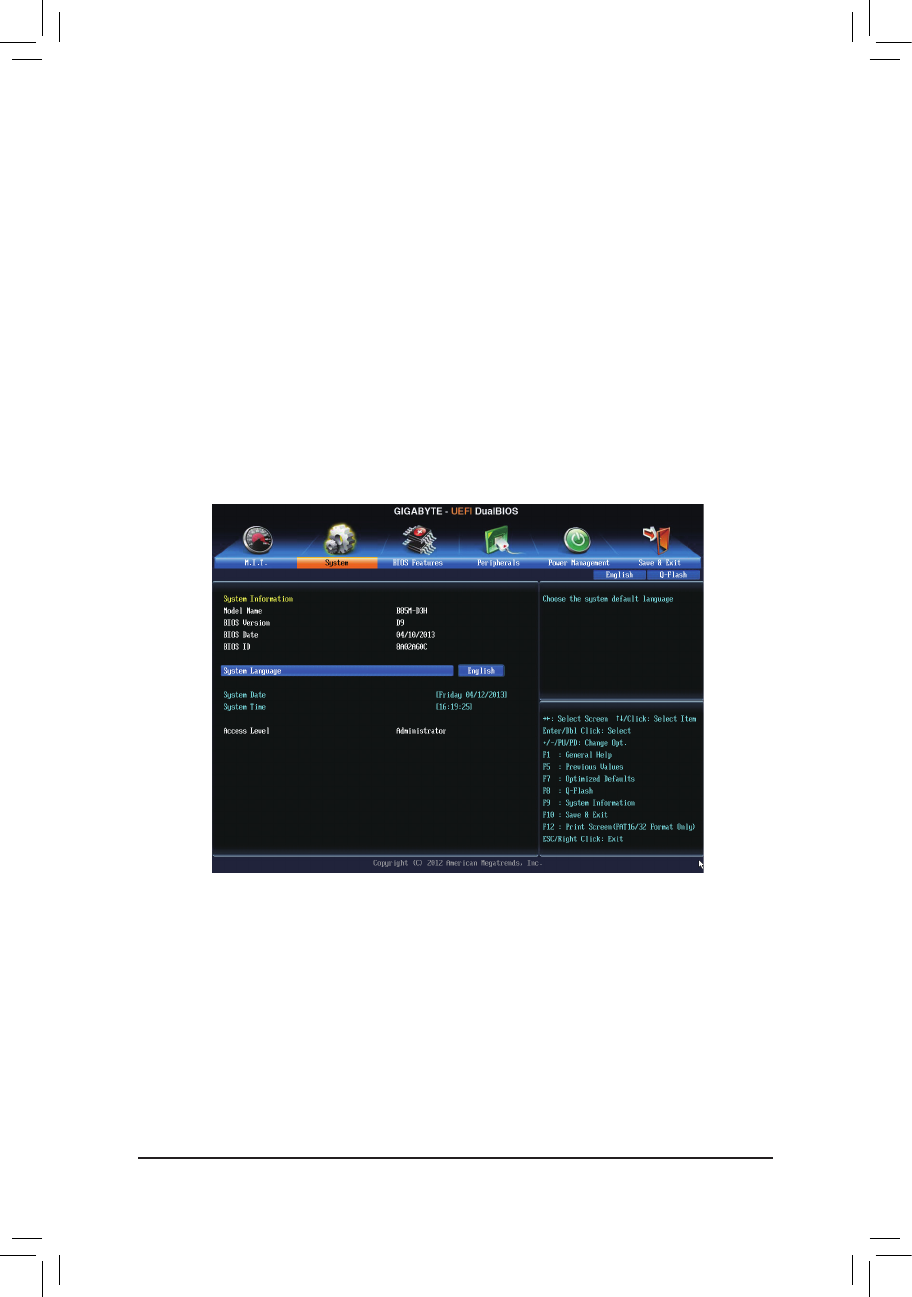

2-3 System

This section provides information on your CPU, memory, motherboard model, and BIOS version. You can also

select the default language used by the BIOS and manually set the system time.

& System Language

Selects the default language used by the BIOS.

& System Date

Sets the system date. The date format is week (read-only), month, date, and year. Use <Enter> to switch

betweentheMonth,Date,andYeareldsandusethe<PageUp>or<PageDown>keytosetthedesired

value.

& System Time

Sets the system time. The time format is hour, minute, and second. For example, 1 p.m. is 13:0:0. Use

<Enter>toswitchbetweentheHour,Minute,andSecondeldsandusethe<PageUp>or<PageDown>

key to set the desired value.

- 24 -
