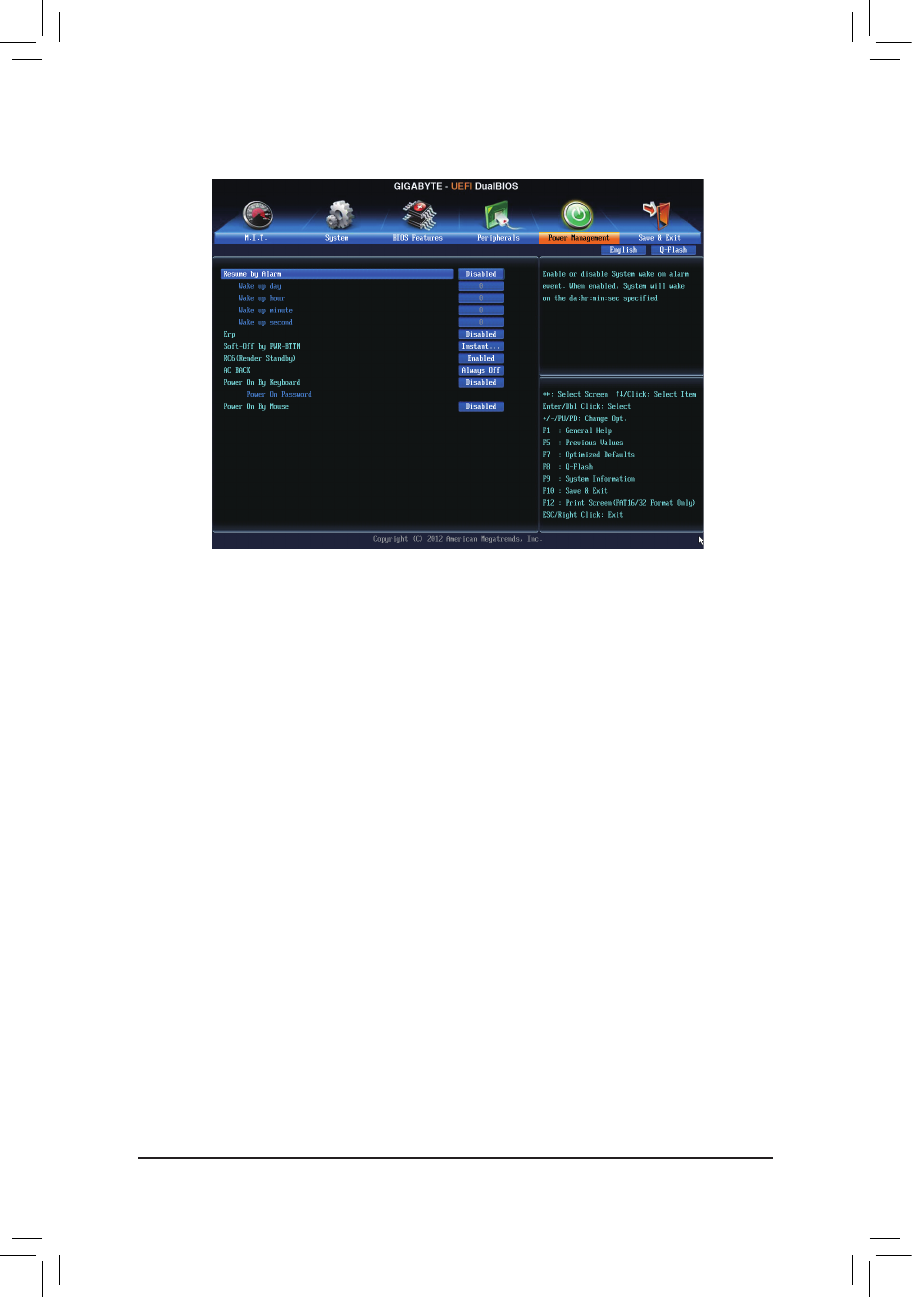

2-6 Power Management

& Resume by Alarm

Determines whether to power on the system at a desired time. (Default: Disabled)

If enabled, set the date and time as following:

Wakeupday:Turnonthesystemataspecictimeoneachdayoronaspecicdayinamonth.

Wake up hour/minute/second: Set the time at which the system will be powered on automatically.

Note: When using this function, avoid inadequate shutdown from the operating system or removal of the

AC power, or the settings may not be effective.

& ErP

Determines whether to let the system consume least power in S5 (shutdown) state. (Default: Disabled)

Note: When this item is set to Enabled, the following functions will become unavailable: PME event wake

up, power on by mouse, power on by keyboard, and wake on LAN.

& Soft-OffbyPWR-BTTN

 ConguresthewaytoturnoffthecomputerinMS-DOSmodeusingthepowerbutton.

Instant-Off Press the power button and then the system will be turned off instantly. (Default)

Delay 4 Sec Press and hold the power button for 4 seconds to turn off the system. If the power

button is pressed for less than 4 seconds, the system will enter suspend mode.

& RC6(Render Standby)

Allows you to determine whether to let the onboard graphics enter standby mode to decrease power

consumption. (Default: Enabled)

& AC BACK

Determines the state of the system after the return of power from an AC power loss.

Memory The system returns to its last known awake state upon the return of the AC power.

Always On The system is turned on upon the return of the AC power.

Always Off The system stays off upon the return of the AC power. (Default)

- 31 -
